Efficient Generative Model Training via Embedded Representation Warmup

Key Idea: Three-Stage Diffusion Circuit

We propose a three-stage diffusion circuit as a structured framework for more effective and interpretable generative modeling:

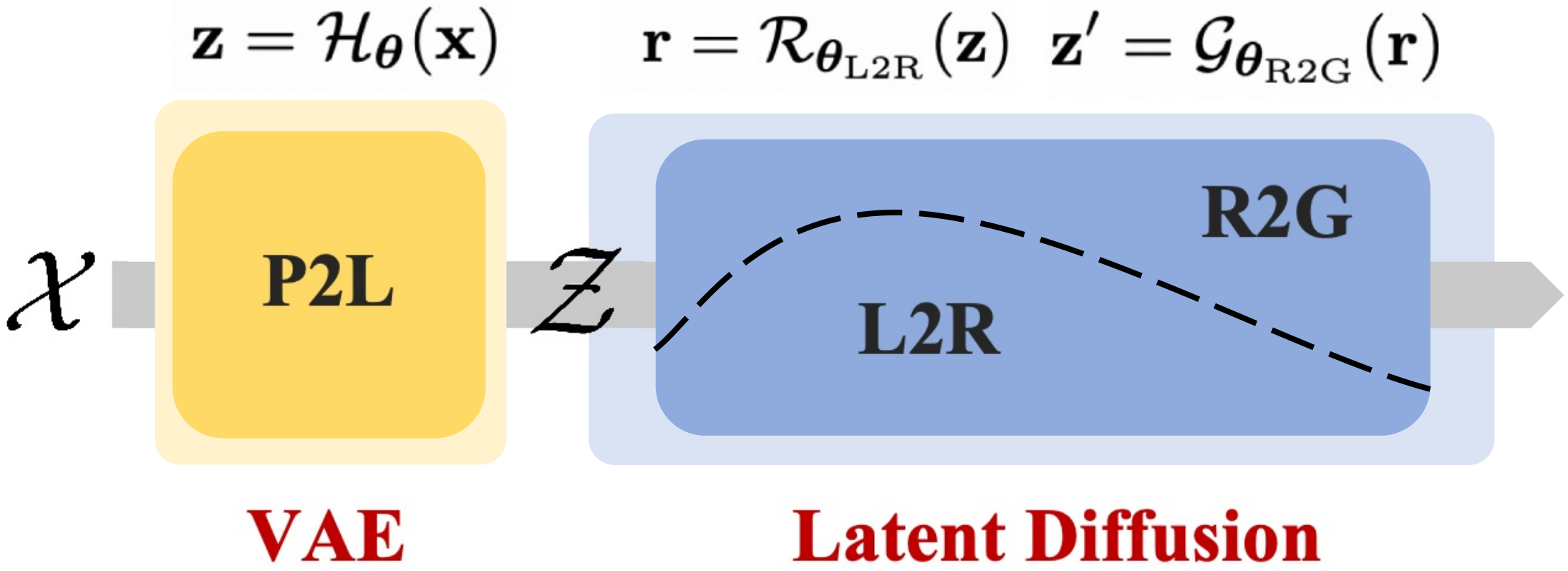

Figure 3: Illustration of the Three-Stage Diffusion Circuit. From left to right, we first apply a VAE encoder (the Pixel-to-Latent or (P2L) stage) to map high-dimensional inputs to a compressed latent space. We then perform latent diffusion on these codes, dividing the backbone into two subregions: the Latent-to-Representation (L2R) region that capture and refine semantic features, and the Representation-to-Generation (R2G) region that decode the learned representation into final outputs.

Our guiding hypothesis is that conventional diffusion methods entangle representation learning and generative decoding within the denoising process, burdening the network with two inherently distinct tasks. By explicitly isolating the semantic processing (L2R) from the generative inversion (R2G), our approach promotes modularity and simplifies the overall optimization landscape.

Results

Comparison to State-of-the-Art Methods

Model	Epochs	FID↓	sFID↓	IS↑	Pre.↑	Rec.↑
Latent diffusion, Transformer
DiT-XL/2	1400	2.27	4.60	278.2	0.83	0.57
SiT-XL/2	1400	2.06	4.50	270.3	0.82	0.59
REPA	200	1.96	4.49	264.0	0.82	0.60
ERW (ours)	40	1.94	7.91	300.9	0.75	0.63

Table 1: System-level comparison on ImageNet 256×256 with CFG. ↓ and ↑ indicate whether lower or higher values are better, respectively.

Training Efficiency and Cost Analysis

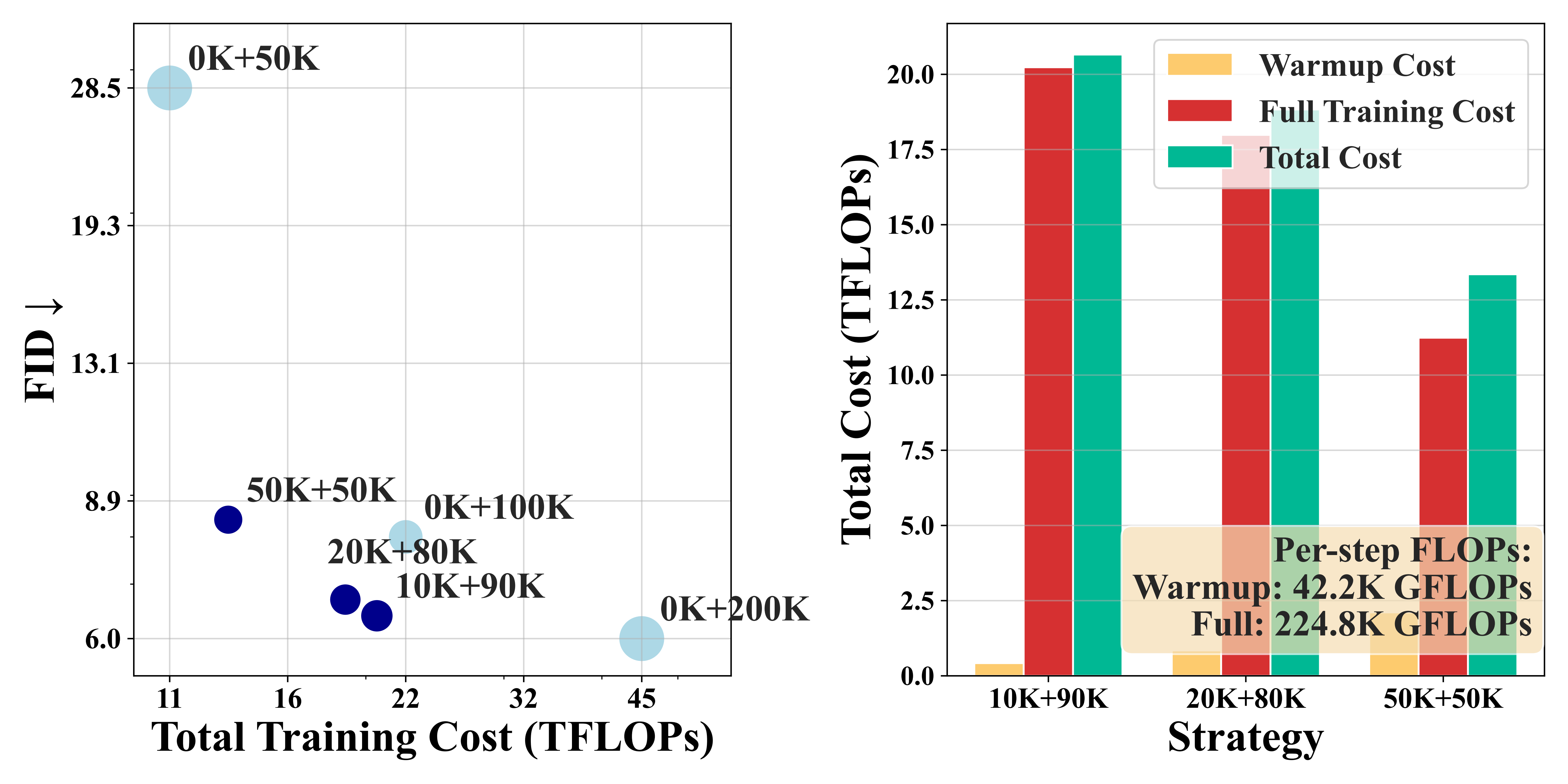

Figure 4: Comparison of Training Efficiency and Cost Analysis with Warmup and Full Training Stages. Left: Scatter plot depicting the relationship between the total training cost (in TFLOPs) and the FID score for various training strategies. Right: Bar chart comparing the computational costs of the warmup and full training stages for different strategies (all evaluated over 100K iterations).

Rapid Convergence Without Classifier-Free Guidance

Model	#Params	Iter.	FID↓	sFID↓	IS↑	Prec.↑	Rec.↑
SiT-XL/2	675M	7M	8.3	6.32	131.7	0.68	0.67
REPA	675M	50K	52.3	31.24	24.3	0.45	0.53
ERW (ours)	675M	50K	8.5	9.59	154.7	0.72	0.51
REPA	675M	100K	19.4	6.06	67.4	0.64	0.61
ERW (ours)	675M	100K	6.0	6.37	207.5	0.67	0.63

Table 2: FID comparisons with SiT-XL/2 on ImageNet 256×256 at various training iterations without classifier-free guidance.

Ablation Studies and Analysis

Effect of ERW Placement

Our hypothesis states that early layers in the diffusion backbone primarily learn semantic features (the L2R circuit), whereas deeper layers specialize in generative decoding.

Target Repr.	Depth	Objective	FID↓	sFID↓	IS↑	Prec.↑	Rec.↑
SiT-B/2 + REPA	-	-	78.2	11.71	17.1	0.33	0.48
DINOv2-B	0-8	NT-Xent	54.2	8.12	27.2	0.45	0.59
DINOv2-B	1-9	NT-Xent	69.1	13.0	18.7	0.37	0.51
DINOv2-B	2-10	NT-Xent	67.7	13.4	19.0	0.38	0.52

Table 3: Analysis of ERW placement influence in SiT-B/2. All models are trained for 50K iterations under the batch size of 256 without using classifier-free guidance on ImageNet 256×256.

Empirical evidence confirms that initializing the earliest layers (0-8) notably outperforms re-initializing middle or late sections, corroborating our three-stage diffusion circuit theory.

Projection Depth and Alignment Weight Optimization

ERW Depth	Proj. Depth	λ	FID↓	sFID↓	IS↑	Prec.↑	Rec.↑
4	14	0.1	21.6	19.58	74.9	0.62	0.49
4	14	0.5	12.4	16.97	124.3	0.68	0.48
4	14	2.0	9.0	11.17	151.2	0.72	0.51
4	14	4.0	8.6	9.84	153.6	0.72	0.51
4	14	6.0	8.8	9.46	151.1	0.71	0.52

Table 4: Analysis of ERW depth, projection depth, and different alignment loss weights (λ) for SiT-XL/2. All models are trained for 50K iterations without classifier-free guidance.

Using 4 warmup layers, a projection head at depth 14, and λ=4.0 achieves an FID of 8.6 at 50k iterations--a substantial gain over baselines.

Representation Dynamics During Training

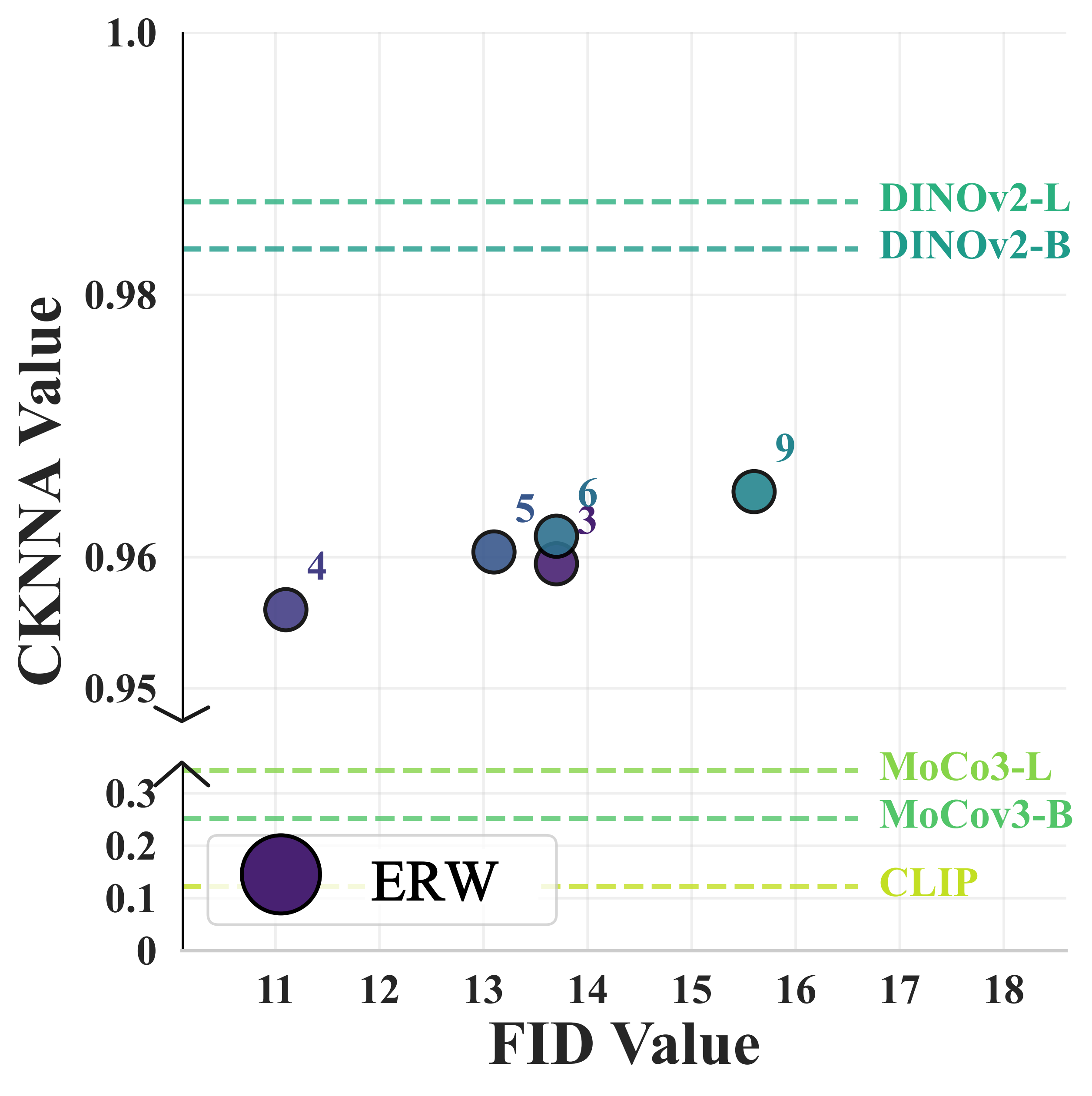

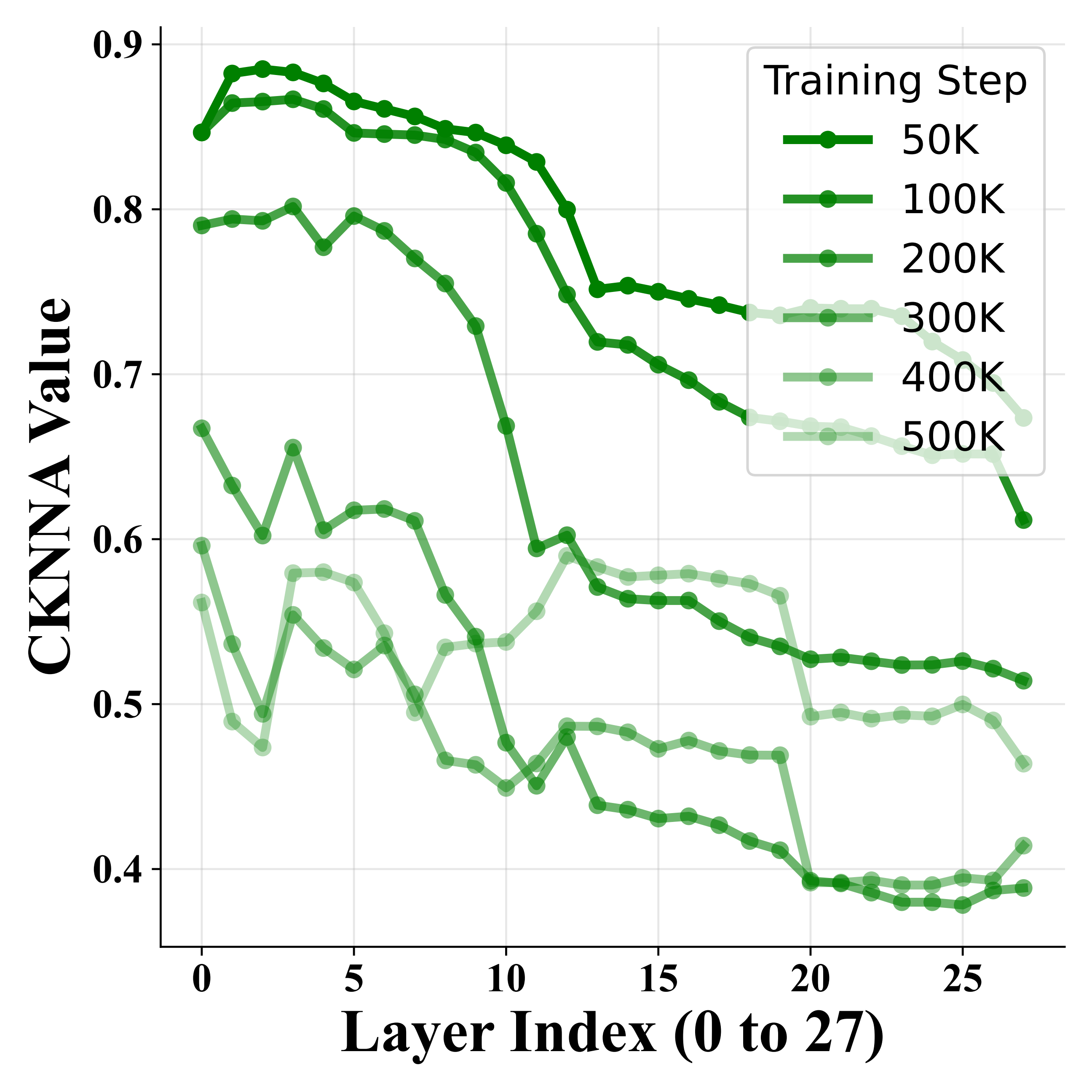

Figure 5: Scalability of ERW. (a) Alignment with ERW plot showing high degree of alignment across all ERW depths. (b) Training dynamics for alignment indicate that within the 500K training steps for SiT-XL/2, the alignment between DINOv2-g and the diffusion model first decreases and then increases.

Representation alignment follows a U-shaped trajectory, revealing the model's gradual reconfiguration of pretrained features for denoising tasks before distilling them into robust, generative-friendly embeddings.

Target Representation Model Selection

Target Repr.	Depth	Objective	FID↓	sFID↓	IS↑	Prec.↑	Rec.↑
MoCov3-B	8	NT-Xent	61.1	7.6	22.38	0.42	0.58
MoCov3-L	8	NT-Xent	73.0	8.0	17.96	0.38	0.52
CLIP-L	8	NT-Xent	58.9	7.7	23.68	0.44	0.54
DINOv2-B	8	NT-Xent	55.6	7.8	25.45	0.44	0.56
DINOv2-L	8	NT-Xent	55.5	7.8	25.45	0.44	0.56
DINOv2-g	8	NT-Xent	59.4	7.6	25.53	0.44	0.56

Table 5: Analysis of different target representation models for ERW on ImageNet 256×256. All models are SiT-B/2 trained for 50K iterations.

All encoders tested offer improvements over baselines, indicating that ERW can broadly benefit from a variety of strong representation models. DINOv2 variants yield comparable gains, suggesting that ERW does not require the largest possible teacher encoder for effective representation transfer.

ERW Depth Optimization

ERW Depth	Proj. Depth	λ	FID↓	sFID↓	IS↑	Prec.↑	Rec.↑
3	8	0.5	13.3	13.65	113.2	0.69	0.48
4	8	0.5	11.7	17.93	114.5	0.68	0.48
5	8	0.5	13.1	15.25	117.0	0.69	0.48
6	8	0.5	13.7	16.62	115.7	0.68	0.49
8	8	0.5	15.6	16.42	104.0	0.67	0.46
12	8	0.5	19.2	16.91	87.8	0.65	0.48

Table 6: Analysis of ERW depth for SiT-XL/2. All models are trained for 50K iterations without classifier-free guidance.

The results show that ERW is most effective when applied to the early layers of the diffusion model (depths 3-5), with performance degrading as more layers are included. This confirms our hypothesis that representation learning primarily occurs in early layers, while later layers focus more on generative refinement.

Acknowledgement

This paper is mainly built upon REPA, LightningDiT, DiT, SiT, edm2, and RCG repositories.
